Telaio

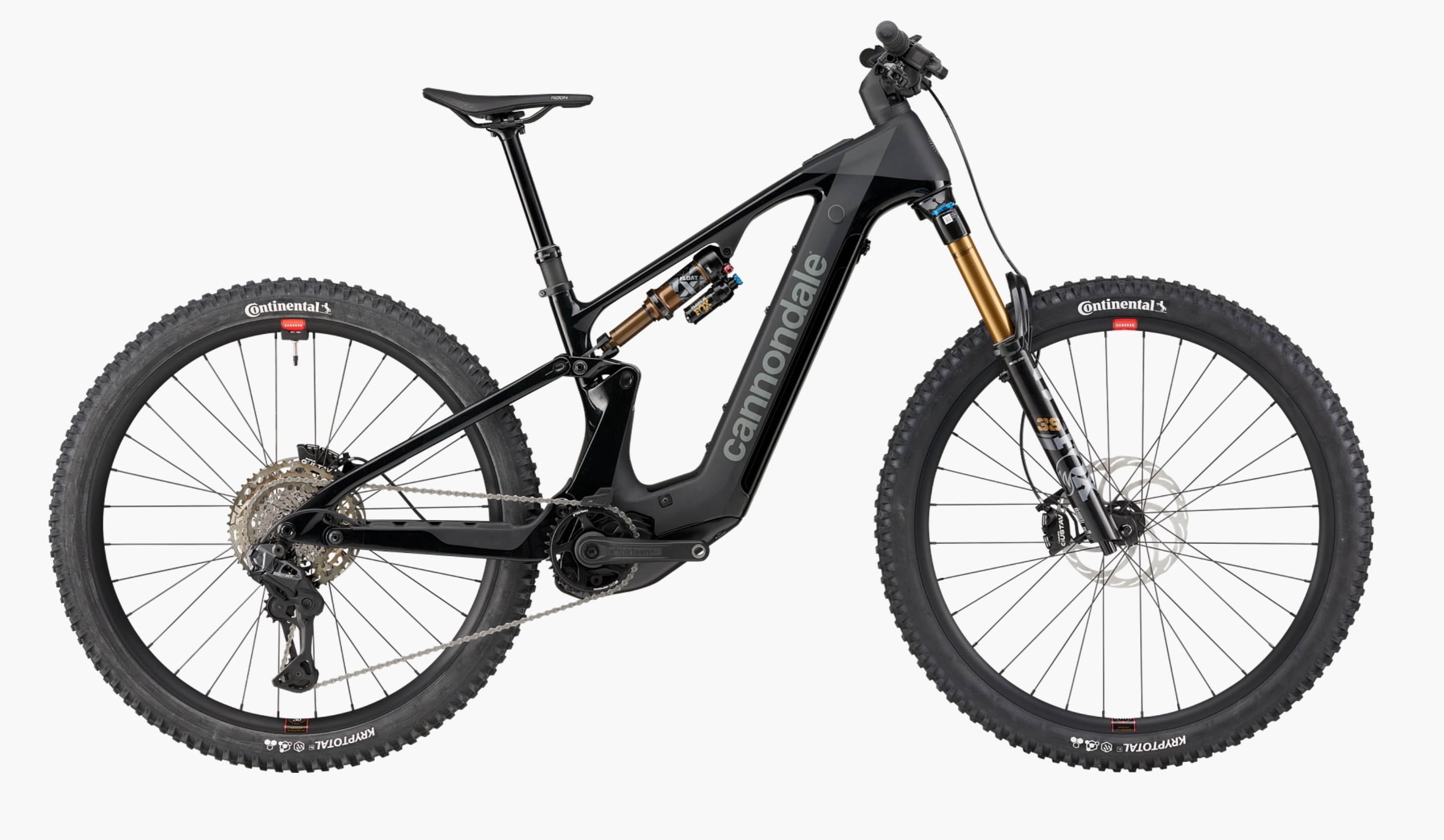

Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
Forcella
Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Serie sterzo
Acros ICR, 1.5" to 1.8", sealed bearings
Rear Shock
Fox Float X Factory, Kashima, 2 pos adj, EVOL LV, 230x62.5mm
E-SYSTEM
Motore
Bosch Performance Line CX
Batteria
Bosch PowerTube, 800Wh
Carica batteria
Bosch 4A
Display
Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote
TRASMISSIONE
Cambio
Shimano XT Di2 M8260, 11-speed, (E-System powered)
Leve cambio
Shimano XT Di2 M8250, wireless, 11-speed
Catena
Shimano LG500, LinkGlide, 11-speed
Guarnitura
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Pacco pignoni
Shimano CUES LG700, LinkGlide, 11-50, 11-speed
FRENI
Freni
Magura Gustav Elite 4-piston hydraulic disc, 203/203mm MDR-S rotors, 2.5mm
Leve Freno
Magura Gustav Elite hydraulic disc
RUOTE
Cerchi
Reserve 30|HD AL, 30mm inner width, tubeless ready
Raggi
Sapim Race
Dimensioni pneumatico
2.4
Dimensione Ruote
29
Mozzi
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
Pneumatici
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
COMPONENTI
Manubrio
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Attacco Manubrio
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
Impugnatura
Cannondale TaperRidge
Sella
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
Reggisella
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
EXTRA
Extra 1
Fillmore Tubeless Valves, Bosch PowerMore range extender compatible
